Place of Origin:
CHINA
Brand Name:
INOVI
Model Number:
INOVI FH160013
Contact Us
| Model No. | Flexible PVC Shower Hose |
|---|---|
| Media | Water |
| Media Temperature | High Temperature 90°C / 194°F |
| Working Pressure | High Pressure 10Bar/ 150PSI |
| Specification: |
H1/2" x H1/2" |
| Size: |
100, 120, 150, 180, 200cm or customed |

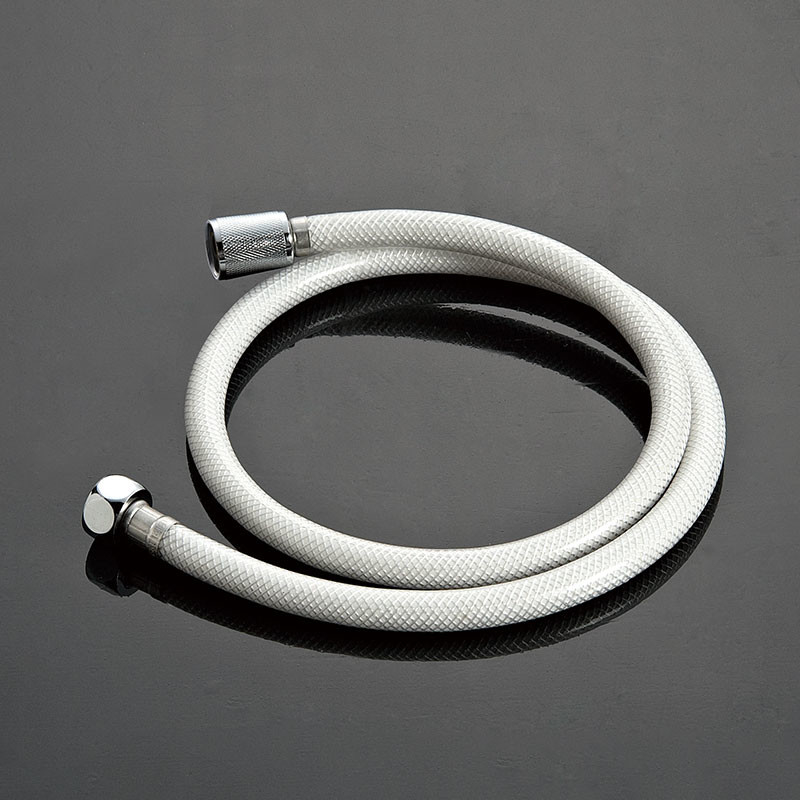

Flexible Braided PVC Hose For Shower Inlet Water Pipe
| Detail Specification | |
| Product Name | PVC inlet hose |
| Piper Material |
PVC |
| Function | Cold/hot water shower inlet hose |
| Working pressure | 0.05-1.6Mpa |
| Seal test | 1.6±0.05Mpa and 0.05±0.01Mpa, keep 1 min, no leakage |
| Flow rate | ≤8.3L/min |
| Plating | Acid salt spray test ≥ 24 or 48 hours |
| Plating thickness | Chrome ≥ 0.2µm, nickel ≥ 8µm Or per your request |
| Warranty time | 5 years |
| Customized | OEM & ODM are welcomed |
Item Name: Braided PVC Hose for shower
Pressure: PN2.5
Chemical: resistance to corrossion
Environment: friendly
Health: harmless,non-toxic
Certification: GB/T 19001-2000-ISO 9001:2000
Features:
1. Hygienic and non-toxic
2. High Temperature Resistance
3. Anti-corrosion and no furring
4. Thermal Insulation and EnergyConservation
5. Light with high intensity
6. Agreeable Appearance
7. Easy and Reliable Installation
8. Long service life
Products Materials
- outer hose: PVC
- washer: EPDM / Silicon
- nut: Brass
- nipple: Brass
- insert core: nylon plastic
- nut size ( screaw thread): 1/2", can be customized as your required.
- outer hose Diameter: Φ14
- length: 100-200cm, can be customized as your required.
- Apply: Bathroom connectors
- Delivery time: 7-30 days (Trial orders, we have stock)
