Place of Origin:
CHINA
Brand Name:
INOVI
Model Number:
INOVI FH130020
Contact Us
| Model No. | Copper Corrugated Hose |
|---|---|
| Media | Water |
| Minimum Temperature | 0°C / 32°F |
| Maximum Temperature | High Temperature 82°C / 180°F |
| Working Pressure | High Pressure 10Bar/ 150PSI |
| Bibcock Material: | Brass |
| Valve Core Material: | Brass |
| Specification: |
3/4"FIPx3/4"FIP 3/4"FIPx3/4"MIP 3/4"FIPx3/4"SWEAT 3/4"FIPx3/4" PEX |
| Size: |
10, 20, 30, 40, 50, 60, 80, 100, 120, 150,200cm or customed |

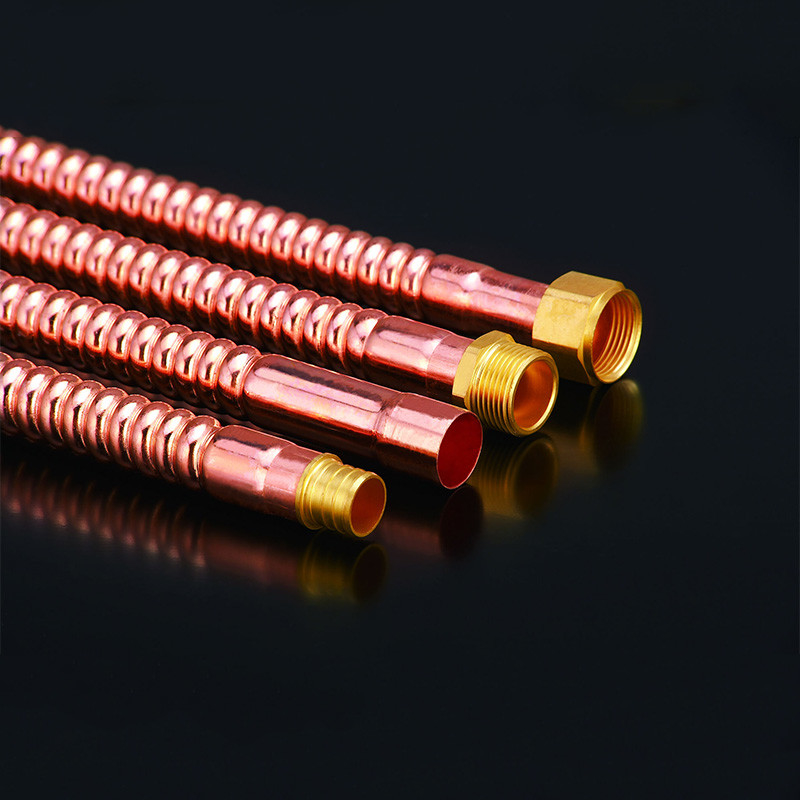

Copper Corrugated Hose For Water Pipe
| Detail Specification | |
| Product Name | Corrugated inlet hose |
| Finishing | Brushed finishing |
| Application |
Water heater |
| Function | Cold/hot inlet hose |
| Working pressure | 0.05-1.6Mpa |
| Seal test | 1.6±0.05Mpa and 0.05±0.01Mpa, keep 1 min, no leakage |
| Flow rate | ≤8.3L/min |
| Plating | Acid salt spray test ≥ 24 or 48 hours |
| Plating thickness | Chrome ≥ 0.2µm, nickel ≥ 8µm Or per your request |
| Warranty time | 5 years |
| Customized | OEM & ODM are welcomed |
Item Name: Copper Corrugated Hose
Pressure: PN2.5
Chemical: resistance to corrossion
Environment: friendly
Health: harmless,non-toxic
Certification: GB/T 19001-2000-ISO 9001:2000
Features:
1. Hygienic and non-toxic
2. High Temperature Resistance
3. Anti-corrosion and no furring
4. Thermal Insulation and EnergyConservation
5. Light with high intensity
6. Agreeable Appearance
7. Easy and Reliable Installation
8. Long service life
Products Materials
- outer hose: Copper
- male fitting: brass
- surface treatment: brush
- nut: Brass
- washer: EPDM Rubber
- nut size ( screaw thread): 3/4", can be customized as your required.
- outer hose Diameter: Φ13, Φ14, Φ15, Φ17, Φ18
- length: 10-200cm, can be customized as your required.
- Apply: water heater connectors
- Delivery time: 7-30 days (Trial orders, we have stock)
