Place of Origin:
CHINA
Brand Name:
INOVI
Model Number:
INOVI FH180030
Contact Us

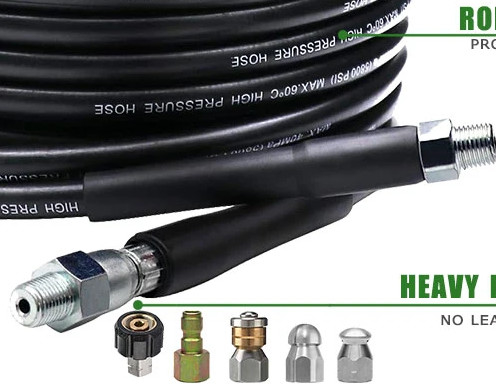

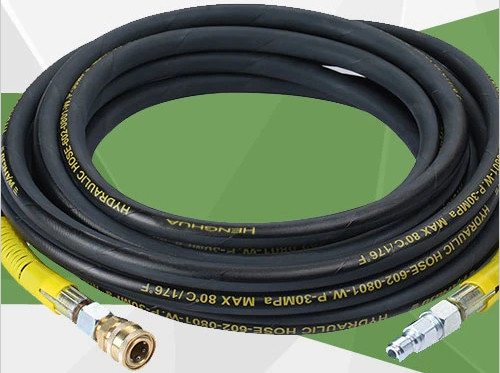

Pressure Washer Hose Features
-RoHS Standard Hose
-Comply with RoHS standard and made of recyclable material to protect your health and earth clean.
Heavy Duty Connection
- Heavy-duty SOLID BRASS and 100% pure ABS mat, more durable and easy to load/unload;
- Version 2.0 enhances cover to protect from broken.

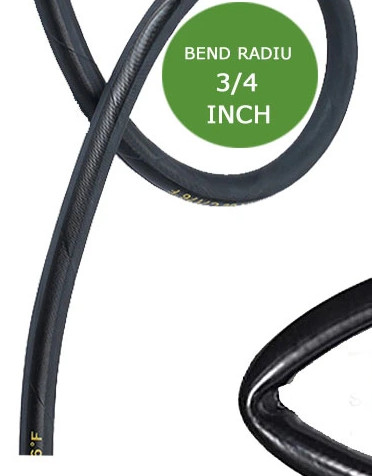

- Smooth Water Flow Under Small Bend Radius
- Even under 3/4" small bend radius, hose still performance smooth water flow without block or kink.
Heavy Duty Bend Restrictors
- Heavy-duty bend restrictors on both ends, Ensure the pressure capability of the pipe connection front end.
INNER TUBE: Black, Oil Resistant, Synthetic Rubber
COVER: Black, Oil, Abrasion and Weather Resistant, Synthe
APPLICATION: Electric Washer, Diesel Washer, Large Industrial Washer
TEMPERATURE RANGE: -40ºF - 250ºF / -40ºC-120ºC
| Product Detail | |
| Name | Pressure Washer Hose |
| Size | 1/4" - 3/8" or as customized |
| Reinforcement | 1 or 2 steel wire braid |
| Temperature Range | -40ºF - 250ºF / -40ºC-120ºC |
| Application | Electric washer,or diesel washer, large industrial washer. |
| Tube: | Black, oil resistant, synthetic rubber. |
| Cover: | Black, oil, abrasion and weather resistant, synthetic rubber,or PVC Rubber |
| Certification | CE and ISO approved |
| Printing Word | We can print LOGO or as your requirement. |
| Packaging Detail | By poly stripes or as your request. |
| Delivery | About 14-45 days based on order quantity and customized requirements |
| Hose code | Size | Dash size | ID | OD | |||
| mm | inch | min | max | min | max | ||
| INOVI FH180030-01 | 3.2 | 1/8 | -2 | 2.8 | 3.8 | 5.3 | 6.8 |
| INOVI FH180030-02 | 5 | 3/16 | -3 | 4.4 | 5.2 | 7.1 | 8.2 |
| INOVI FH180030-03 | 6.3 | 1/4 | -4 | 6 | 6.9 | 8.9 | 10.1 |
| INOVI FH180030-04 | 8 | 5/16 | -5 | 7.5 | 8.4 | 10.4 | 11.6 |
| INOVI FH180030-05 | 10 | 3/8 | -6 | 9.1 | 10 | 12.2 | 13.4 |
| INOVI FH180030-06 | 11 | 7/16 | -7 | 9.9 | 10.9 | 12.9 | 14.3 |
| INOVI FH180030-07 | 12.5 | 1/2 | -8 | 12.3 | 13.3 | 15.3 | 16.8 |
| INOVI FH180030-08 | 16 | 5/8 | -10 | 15.3 | 16.5 | 18.6 | 20.1 |
| INOVI FH180030-09 | 19 | 3/4 | -12 | 18.4 | 19.6 | 21.3 | 23.3 |
| INOVI FH180030-10 | 22 | 7/8 | -14 | 21.4 | 23 | 24.6 | 26.9 |
| INOVI FH180030-11 | 25 | 1 | -16 | 24.6 | 26.2 | 27.8 | 29.8 |
| INOVI FH180030-12 | 29 | 1-1/8 | -18 | 27.8 | 29.4 | 31.9 | 31.9 |
- KINK RESISTANT POWER WASHER HOSE
- Kink resistant premium PVC hose provides high rust resistance.
- Textile braided reinforcement and seamless inner tube make sure smooth water flow.
- M22-14mm America standard threads.
| Hydraulic Hose | Reinforcement | Product Name |
| One steel wire braided | SAE R1AT/DIN 1SN,SAE R1AT/DIN 1ST,DIN 1SNK,DIN/EN 1SN WG,DIN 1SC,SAE R5,SAE 100R17 | |
| Two steel wire braided | SAE R2AT/DIN 2SN,SAE R2AT/DIN 2ST,DIN 2SNK,DIN 2SC | |
| One/two wire braided | SAE R16 | |
| Four steel wire spiral | SAE R9AT,SAE R10,SAE R12,DIN 4SP,DIN 4SH | |
| High flexibility nylon or thermoplastic | SAE R7,SAE R8 | |
| Industrial Hose | Steam hose,Water/Air hose,Fuel/Oil hose,Washer hose | |
