Place of Origin:
CHINA
Brand Name:
INOVI
Model Number:
INOVI FH160030
Contact Us
Hydraulic hose offers a large range of hydraulic hose & fittings suitable for use on various applications across multiple industries. Our hydraulic hose range includes 1SC, 2SC, 100 R1-R17, 4SP, 4SH ,1SN,2SN,1-3TE& suction & delivery hose, along with compatible hose inserts and ferrules.
If you're not sure what type of hose you should be using for your application, please get in touch and we will provide you with the correct hose for the job! We don't only supply loose hose and hose fittings we can also make bespoke hose assemblies to your given specification, get in touch with our friendly sales team to discuss your hose assembly needs today.
| Hydraulic Hose | Reinforcement | Product Name |
| One steel wire braided | SAE R1AT/DIN 1SN,SAE R1AT/DIN 1ST,DIN 1SNK,DIN/EN 1SN WG,DIN 1SC,SAE R5,SAE 100R17 | |
| Two steel wire braided | SAE R2AT/DIN 2SN,SAE R2AT/DIN 2ST,DIN 2SNK,DIN 2SC | |
| One/two wire braided | SAE R16 | |
| Four steel wire spiral | SAE R9AT,SAE R10,SAE R12,DIN 4SP,DIN 4SH | |
| High flexibility nylon or thermoplastic | SAE R7,SAE R8 | |
| Industrial Hose | Steam hose,Water/Air hose,Fuel/Oil hose,Washer hose | |
| Product Name | Chief Introduction |
| Air Hose | High strength synthetic yarn reinforced |
| Water Hose | High strength synthetic yarn reinforced |
| Oil Hose | Single/double synthetic yarn braided or spiraled |
| Welding Hose | High strength synthetic cord reinforced |
| Gas Hose(LPG Hose) | High tensile synthetic yarn braided or spiraled |
| Heat Resistent Hose | 1 or 2 piles of fiber braid reinforcement |
| Air Condition Hose(Freon Hose) | Strengthen lining is weaving fiber |
Specification
1. PVC Air Hose
Construction:
Tube: PVC material
Reinforcement: 1 ply or 2ply high tensile polyester braiding
Cover: PVC, black, red, yellow, blue
Application:
The PVC air hose is widely used in pneumatic tools, air compressor, rock drill, automated air line, air supply, cleaning equipment, construction equipment and so on.
Feature:
- High tensile polyester renforced
- Work under high pressure 300 psi
- Strong peeling adhesion between fibre and pvc
light, flexible, non-kinking, non-twisting
- UV and ozone resistant, weather resistant
- Can be used for jackhammer hose
Temperature: -10ºC(-50°F)to 65ºC(+150°F)
2. Multi-purpose TPR Hose 300PSI
Construction :
Tube and Cover:TPR(NBR/PVC), smooth, oil resistance Reinforcement : 1plyor2plypolyester braiding
Application :
The multi purpose TPR(rubber/pvc mixed) air hose is designed for pneumatic tools, air compressors , Rock drill, automated air line, air supply, cleaning equipment, construction equipment and so on.
Characteristics :
- Oil mist resistant tube and cover.
- Ozone and UV resistant, weather resistant.
- Flexible and non-kinking.
- Black yellow, red, more color choices
Temperature :−30°C(−22°F) to+80°C(+176°F)

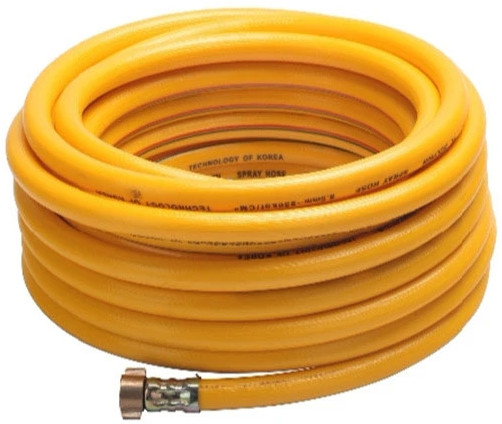

3. HYBRID AIR HOSE
Construction :
Tube and cover: Specialized blend of rubber and pvc Reinforcement :high tensile polyester braiding
Application :
The hybrid air hose is widely used in pneumatic tools,
air compressors , automated air line, air supply, cleaning
equipment, construction equipment and so on.
Temperature :−30ºC(−22°F) to65ºC(+150°F)
Characteristic :
- Extreme all-weather flexibility
- Flexible even in sub-zero temperatures
- Max working pressure300psi
- Excellent abrasion-resistant outer cover
- Light weight, flexible, non-kinking, non-twisting
- UV and ozone resistant, Anti-aging
- With 1/4"NPT fittings
