Place of Origin:
CHINA
Brand Name:
INOVI
Model Number:
INOVI FH170010
Contact Us

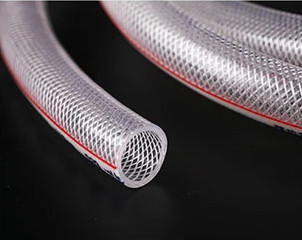

PVC fibre reinforced hose has excellent chemical and physical property, very ideally for conveying water,oil and gas, Widely used in construction, agricultural,fishery, project, household and industrial service.
Characteristics
It is flexible, transparent, durable, non-toxic, without odor, anti-erosion and adaptable to high pressure condition. By adding colorful symbol lines on the surface of the hose, it looks more beautiful.
Temperature range: -10ºC to +65
Application
The product is used for conveying water, oil, gas under normal working condition in the factory, farm, ship, building and family.The hose used for foodstuffs is made of special materials. It is light, flexible, durable, non-toxic, without odor, transparent. It can also be used for conveying milk, beverage, distilled liquor, beer, jan and other foods in vending machines, ice machine and refrigerators, etc.
Specification
| I.D | O.D | W.P. | B.P. | Length | Weight | Volume | |||
| inch | mm | mm | psi | bar | psi | bar | m/roll | kg/roll | m3/roll |
| 1/4" | 6 | 10 | 145 | 10 | 435 | 30 | 100 | 6.60 | 0.015 |
| 5/16" | 8 | 12 | 145 | 10 | 435 | 30 | 100 | 8.30 | 0.019 |
| 3/8" | 9 | 13 | 131 | 9 | 392 | 27 | 100 | 9.10 | 0.025 |
| 13/32" | 10 | 14 | 116 | 8 | 348 | 24 | 100 | 9.90 | 0.029 |
| 1/2" | 12 | 16 | 102 | 7 | 305 | 21 | 100 | 11.60 | 0.038 |
| 1/2" | 13 | 17 | 87 | 6 | 261 | 18 | 100 | 16.10 | 0.045 |
| 35/64" | 14 | 19 | 102 | 7 | 305 | 21 | 100 | 17.10 | 0.052 |
| 5/8" | 15 | 19 | 87 | 6 | 261 | 18 | 50 | 7.05 | 0.030 |
| 5/8" | 16 | 20 | 73 | 5 | 218 | 15 | 50 | 7.45 | 0.030 |
| 45/64" | 18 | 24 | 87 | 6 | 261 | 18 | 50 | 13.05 | 0.035 |
| 3/4" | 19 | 23 | 58 | 4 | 174 | 12 | 50 | 8.70 | 0.043 |
| 25/32" | 20 | 25 | 87 | 6 | 261 | 18 | 50 | 11.65 | 0.046 |
| 7/8" | 22 | 27 | 73 | 5 | 218 | 15 | 50 | 12.70 | 0.056 |
| 1" | 25 | 30 | 58 | 4 | 174 | 12 | 50 | 14.25 | 0.068 |
| 1-1/4" | 32 | 39 | 58 | 4 | 174 | 12 | 40 | 20.60 | 0.119 |
| 1-1/2" | 38 | 45 | 58 | 4 | 174 | 12 | 40 | 24.08 | 0.151 |
| 1-3/4" | 45 | 55 | 58 | 4 | 174 | 12 | 40 | 41.44 | 0.217 |
| 2" | 50 | 58 | 44 | 3 | 131 | 9 | 40 | 35.80 | 0.198 |
| 2-1/2" | 64 | 78 | 58 | 4 | 174 | 12 | 40 | 82.40 | 0.304 |
| 3" | 75 | 90 | 58 | 4 | 174 | 12 | 40 | 102.60 | 0.350 |
| Diameter: | 1/4" - 3/8" |
|---|---|
| Standard: | SCH80, CNS, SCH40, DIN, JIS, BS, ANSI |
| Material: | PVC |
| Thickness: | 2~7.5 mm |
| Type: | Watering Hose |
| Feature: | Non-Toxic,Without Odor |
