Place of Origin:
CHINA
Brand Name:
INOVI
Model Number:
INOVI FH130010
Contact Us
| Model No. | Stainless Steel Corrugated Hose |
|---|---|
| Media | Water |
| Minimum Temperature | 0°C / 32°F |
| Maximum Temperature | High Temperature 90°C / 194°F |
| Working Pressure | High Pressure 10Bar/ 150PSI |
| Bibcock Material: | Brass |
| Valve Core Material: | Brass |
| Specification: |
F1/2"xM1/2" F1/2"xF1/2" F3/4"xM3/4" F3/4"xF3/4" F1"xM1" F1"xF1" F1-1/4"xM1-1/4" F1-1/4"xF1-1/4" F1-1/2"xM1-1/2" F1-1/2"xF1-1/2" F2"xM2" F2"xF2" 3/4"FIPx3/4"FIP 1-1/4"FIPx1-1/4"FIP 3/4"FIPx1"FIP 1-1/2"FIPx1-1/2"FIP 3/4"FIPx3/4"SWEAT 2"FIPx2"FIP 1"FIPx1"FIP 3/4"FIPx3/4" PUSH-FIT |
| Size: |
10, 20, 30, 40, 50, 60, 80, 100, 120, 150,200cm or customed |

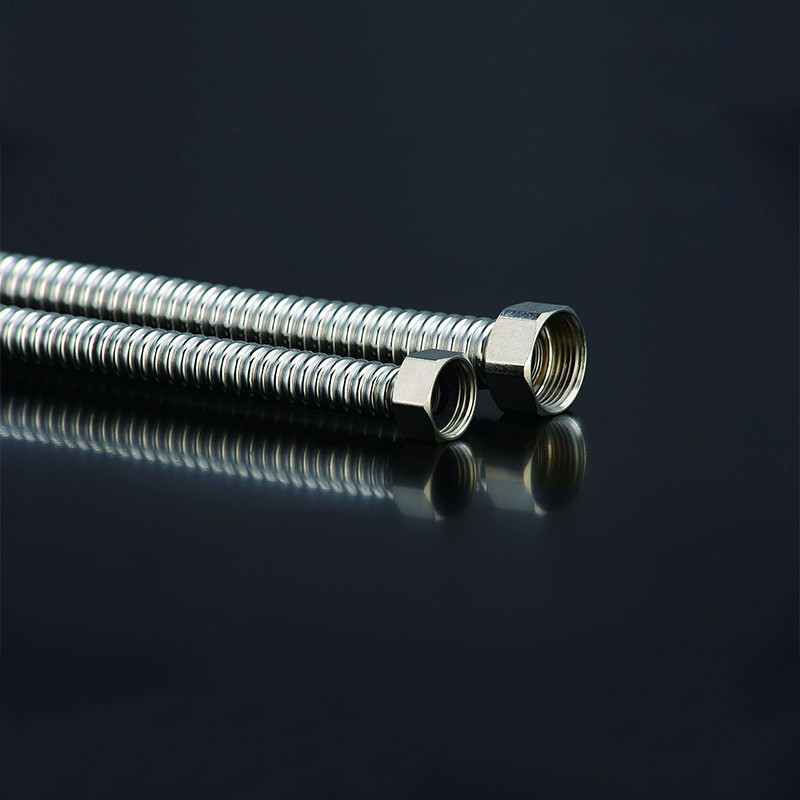

Stainless Steel 304 Corrugated Hose For Water Pipe
| Detail Specification | |
| Product Name | Corrugated inlet hose |
| Finishing | Brushed finishing |
| Application | Kitchen, toilet, faucet, water heater, water tank, air conditioner |
| Function | Cold/hot inlet hose |
| Working pressure | 0.05-1.6Mpa |
| Seal test | 1.6±0.05Mpa and 0.05±0.01Mpa, keep 1 min, no leakage |
| Flow rate | ≤8.3L/min |
| Plating | Acid salt spray test ≥ 24 or 48 hours |
| Plating thickness | Chrome ≥ 0.2µm, nickel ≥ 8µm Or per your request |
| Warranty time | 5 years |
| Customized | OEM & ODM are welcomed |
Item Name: Stainless Steel 304 Corrugated Hose
Pressure: PN2.5
Chemical: resistance to corrossion
Environment: friendly
Health: harmless,non-toxic
Certification: GB/T 19001-2000-ISO 9001:2000
Features:
1. Hygienic and non-toxic
2. High Temperature Resistance
3. Anti-corrosion and no furring
4. Thermal Insulation and EnergyConservation
5. Light with high intensity
6. Agreeable Appearance
7. Easy and Reliable Installation
8. Long service life
Products Materials
- outer hose: Stainless Steel ANSI 304
- male fitting: brass
- Spiring: stainless steel
- surface treatment: brush
- nut: Nickel Plated Brass/zinc/plastic
- washer: EPDM Rubber
- ferrule: Stainless Steel ANSI 304
- elbow: Nickel Plated Brass
- insert: Stainless steel
- nut size ( screaw thread): 3/4", can be customized as your required.
- outer hose Diameter: Φ13, Φ14, Φ15, Φ17, Φ18
- length: 10-200cm, can be customized as your required.
- Apply: washing machine connectors
- Delivery time: 7-30 days (Trial orders, we have stock)
