Place of Origin:
CHINA
Brand Name:
INOVI
Model Number:
INOB1091
Contact Us

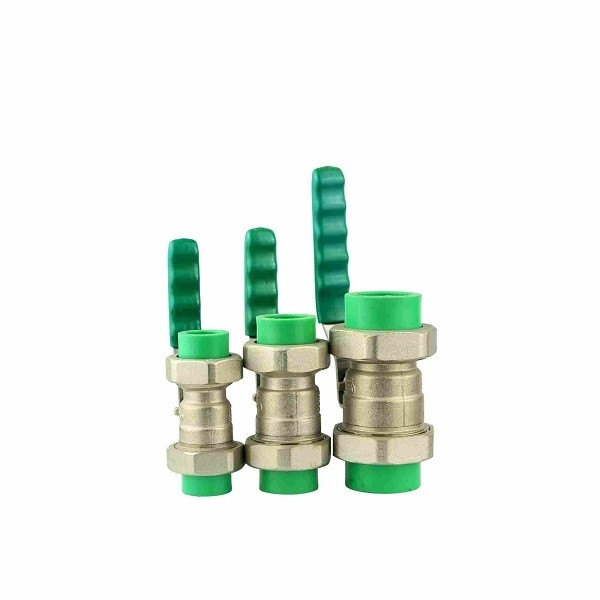

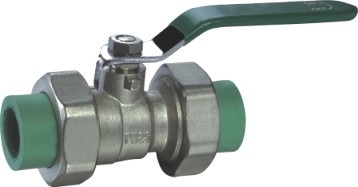

CW617N Brass Ball PPR Valves INOB1091 Level Hand 1/2"-4"
.
The INOB1091 PPR ball valve is a compact, easy to operate, valves in the MAASU range and are designed for long, trouble free service. They provide an ideal means of isolating a range of fluids in pipe lines. Brass body and steel handle with red color (heating), blue color (cooling).
| Item No. | Size | Ø | Ø1 | A | B | h | Weight (gram) | Thickness of PPR Joint (mm) |
| INOB1091-12 | G1/2 | 1/2"(DN20) | 14.5 | 96 | 99 | 48.5 | 320 | 4. |
| INOB1091-34 | G3/4 | 3/4"(DN25) | 19 | 96 | 108 | 50.5 | 466 | 5.0 |
| INOB1091-1 | G1 | 1"(DN32) | 23 | 110 | 111.5 | 55 | 723 | 6.5 |
| INOB1091-114 | G11/4 | 11/4"(DN40) | 30 | 139 | 132 | 69.5 | 1220 | 7.9 |
| INOB1091-112 | G11/2 | 11/2"(DN50) | 37 | 139 | 142 | 73.5 | 1670 | 9.9 |
| INOB10910-2 | G2 | 2"(DN63) | 47 | 160 | 167.5 | 80 | 3040 | 12.7 |
| INOB10910-212 | G21/2 | 21/2"(DN75) | 57 | 221 | 199 | 109 | 5000 | 15.1 |
| INOB10910-3 | G3 | 3"(DN90) | 69 | 221 | 227 | 114 | 7500 | 18.1 |
| INOB10910-4 | G4 | 4"(DN110) | 84 | 221 | 250 | 126 | 11000 | 22.1 |
| Description | Material | |
| 1 | Body | Brass (CW617N, CW614, CW602N, ASTM C 37700) or According to Requirements |
| 2 | Ball | Brass (CW617N, CW614, CW602N, ASTM C 37700) or According to Requirements |
| 3 | Body | Brass (CW617N, CW614, CW602N, ASTM C 37700) or According to Requirements |
| 4 | Seal Ring | Telfon |
| 5 | Bonnet | Brass (CW617N, CW614, CW602N, ASTM C 37700) |
| 6 | Nut | Brass (CW617N, CW614, CW602N, ASTM C 37700) |
| 7 | Handle | Steel or Stainless Steel 304 with Plastic Cover or According to Requirements |
| 8 | Gasket | Telfon |
| 9 | Stem | Brass (CW617N, CW614, CW602N, ASTM C 37700) |
| 10 | O-Ring | Rubber |
| (1) | Seal Nut | Brass (CW617N, CW614, CW602N, ASTM C 37700) |
| (2) | Joint | PPR |
