Place of Origin:
CHINA
Brand Name:
INOVI
Model Number:
INO10101
Contact Us

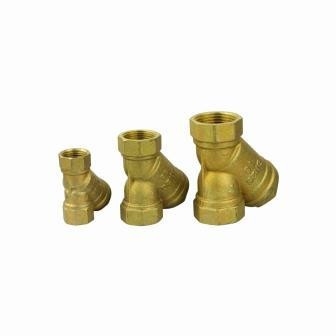

The INO10101 strainer is a compact, easy to operate, valves in the MAASU range and are designed for long, trouble free service. They provide an ideal means of isolating a range of fluids in pipe lines.
| Item No. | Size | d1 | DN1 | l1 | z1 | slw1 | d2 | DN2 | I2 | z2 | slw2 | h2 | V | a | angle |
| INO10101-12 | G1/2(DN15) | 25 | DN15 | 40 | 28 | 25 | 25 | DN15 | 18 | 6 | 25 | 18 | 47 | 45 | 45 |
| INO10101-34 | G3/4(DN20) | 31 | DN20 | 50 | 34 | 31 | 31 | DN20 | 21 | 5 | 31 | 18 | 54 | 45 | 45 |
| INO10101-1 | G1(DN25) | 38 | DN25 | 60 | 42 | 38 | 38 | DN25 | 28 | 10 | 38 | 19 | 63 | 45 | 45 |
| INO10101-114 | G11/4(DN32) | 48 | DN32 | 70 | 52 | 48 | 48 | DN32 | 26 | 8 | 48 | 19 | 75 | 45 | 45 |
| INO10101-112 | G11/2(DN40) | 55 | DN40 | 76 | 57 | 55 | 55 | DN40 | 30 | 11 | 55 | 20 | 84 | 45 | 45 |
| INO10101-2 | G2(DN50) | 72 | DN50 | 94 | 74 | 72 | 72 | DN50 | 32 | 12 | 72 | 20 | 103 | 45 | 45 |
| Color | Brass |
| Materials | Forged Brass (CW617N, CW614, CW602N, ASTM C37700) |
| Finishing | None |
| Manufacturer | MAASU Co., Ltd. |
| Shape | Straight 45° |
| Connection Type | G - Female Thread Gas Cylindrical (BSPP) |
| Pressure Rating (PN) | PN16 |
| Label | Value |
| Shape | Y-Filter |
| Housing Material | Brass |
| Surface Protection | Unthreated |
| Connection | Internal Thread Cylindrical BSPP-G (ISO 228-1) |
| With Coupling | No |
| With Drain Possiblity (Connection) | No |
| Gastec QA Mark | No |
| Gastec QA - AR 214 (H2) | No |
