Place of Origin:
CHINA
Brand Name:
INOVI
Model Number:
INOJY2000
Contact Us
Brass Forged Cut-off Valve INOJY2000 T/Wheel Handle 1/2"-2" ( 2 x Female Thread)
.

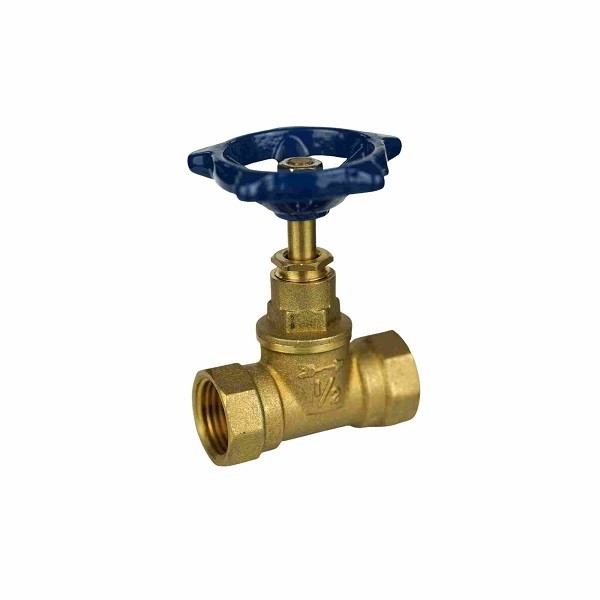

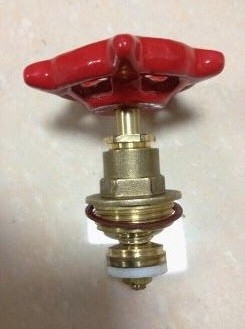

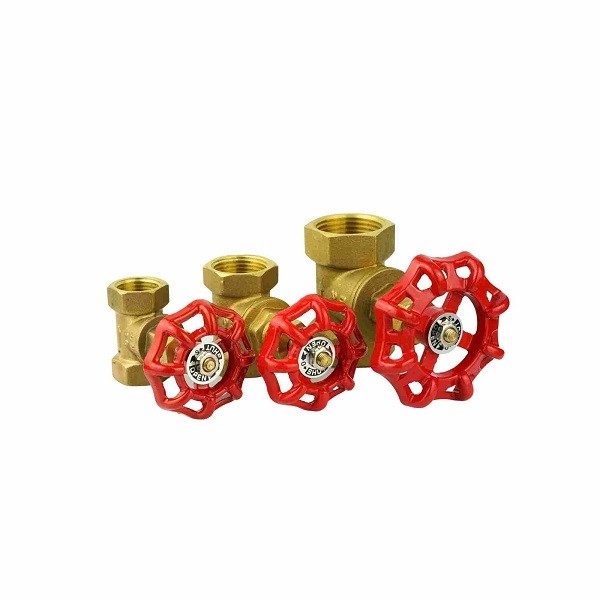

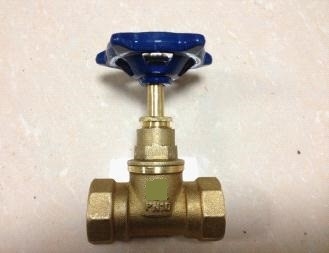

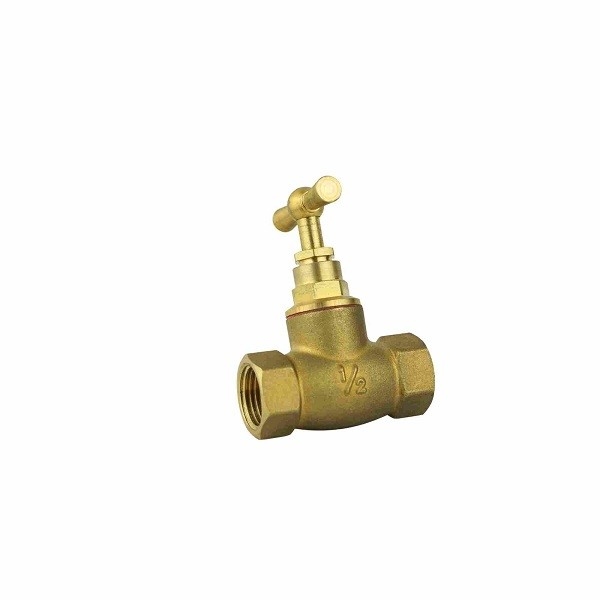

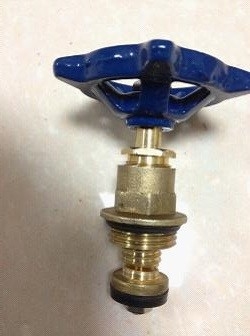

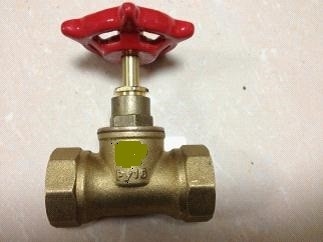

The INOJY2000 forged brass cut-off valve is a compact, easy to operate, valves in the MAASU range and are designed for long, trouble free service. They provide an ideal means of isolating a range of fluids in pipe lines. Brass body and brass T handle and steel wheel handle with red color (heating), blue color (cooling).
| Item No. | Size | d1 | DN1 | l1 | z1 | slw1 | d2 | DN2 | l2 | z2 | slw2 | M | H | Y | V | U | a |
| INOJY2001-12 | G1/2 | 31 | 1/2"(DN15) | 23 | 14 | 31 | 31 | DN15 | 23 | 14 | 20 | 55 | 70 | 15 | 29 | 26 | 90 |
| INOJY2001-34 | G3/4 | 38 | 3/4"(DN20) | 24 | 14 | 38 | 38 | DN20 | 24 | 14 | 20 | 55 | 80 | 16 | 34 | 33 | 90 |
| INOJY2001-1 | G1 | 46 | 1"(DN25) | 29 | 18 | 46 | 46 | DN25 | 29 | 18 | 21 | 64 | 95 | 19 | 41 | 41 | 90 |
| INOJY2001-114 | G11/4 | 59 | 11/4"(DN32) | 32 | 19 | 59 | 59 | DN32 | 32 | 19 | 26 | 77 | 115 | 19 | 57 | 49 | 90 |
| INOJY2001-112 | G11/2 | 65 | 11/2"(DN40) | 35 | 21 | 65 | 65 | DN40 | 35 | 21 | 26 | 86 | 125 | 20 | 65 | 55 | 90 |
| INOJY2001-2 | G2 | 80 | 2"(DN50) | 43 | 22 | 80 | 80 | DN50 | 43 | 22 | 31 | 95 | 155 | 25 | 88 | 67 | 90 |
| Color | Brass |
| Materials | Brass (CW617N, CW614, CW602N, ASTM C 37700) or According to Requirements |
| Finishing | None |
| Manufacturer | MAASU Co., Ltd. |
| Shape | Straight |
| Connection Type | G - Female Gas Conical (BSPP) |
| Pressure Rating (PN) | PN16 |
| Sealing | NBR (Nitrile) |
