Place of Origin:
CHINA
Brand Name:
INOVI
Model Number:
INOBT50201
Contact Us

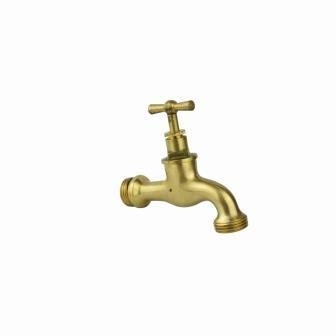

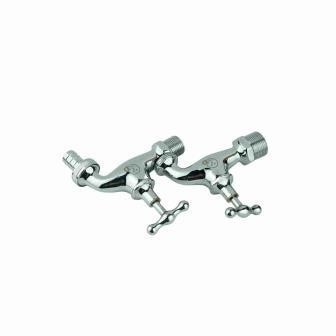

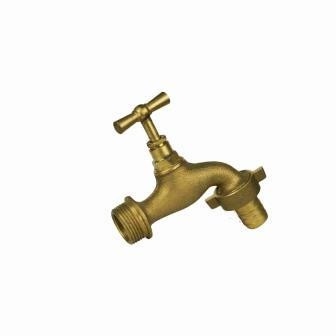

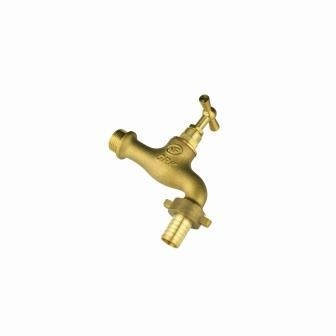

Brass Bibtaps INOBT50201 Hose Uniob BS1010 T-Handle With Nozzel Male Thread
The INOBT50201 hose union bibtap is a compact, easy to operate, taps in the MAASU range and are designed for long, trouble free service. They provide an ideal means of isolating a range of fluids in pipe lines.
| Item No. | Size | DN1 | l1 | z1 | DN2 | I2 | z2 | M1 | M2 | Y | V | U | D1 | angle |
| INOBT50201 | G1/2" | 1/2" (DN15) | 70 | 36 | DN15 | 44 | 31 | 27 | 27 | 15 | 63 | 30 | 30 | 0 |
| INOBT50202 | G3/4" | 3/4" (DN20) | 76 | 34 | DN20 | 60 | 44 | 31 | 31 | 17 | 64 | 40 | 30 | 0 |
| Color | Brass |
| Materials | Brass (CW617N, CW614, CW602N, ASTM C37700) |
| Finishing | None, Chromed (Optional) |
| Manufacturer | MAASU Co., Ltd. |
| Shape | Elbow 0° |
| Connection Type | G - Female Thread Gas Cylindrical (BSPP) , Hose Connector |
| Pressure Rating (PN) | PN10 |
| Sealing | Rubber Sealing |
| Label | Value |
| Housing Material | Brass |
| Surface Protection | Unthreated |
| Connection Size Supply | 1/2, 3/4 Inch |
| Tap Nozzel | With Hose Connection |
| With Aerator | No |
